200Ah 12V Lithium LiFePO4 Battery Slim Built-in BMS & Power Voltage Display

  • Sale
  • Regular price $1,350.00


PRE-SALE ITEM SHIPPED AFTER 14TH OF FEBRUARY.

SELLING FAST !

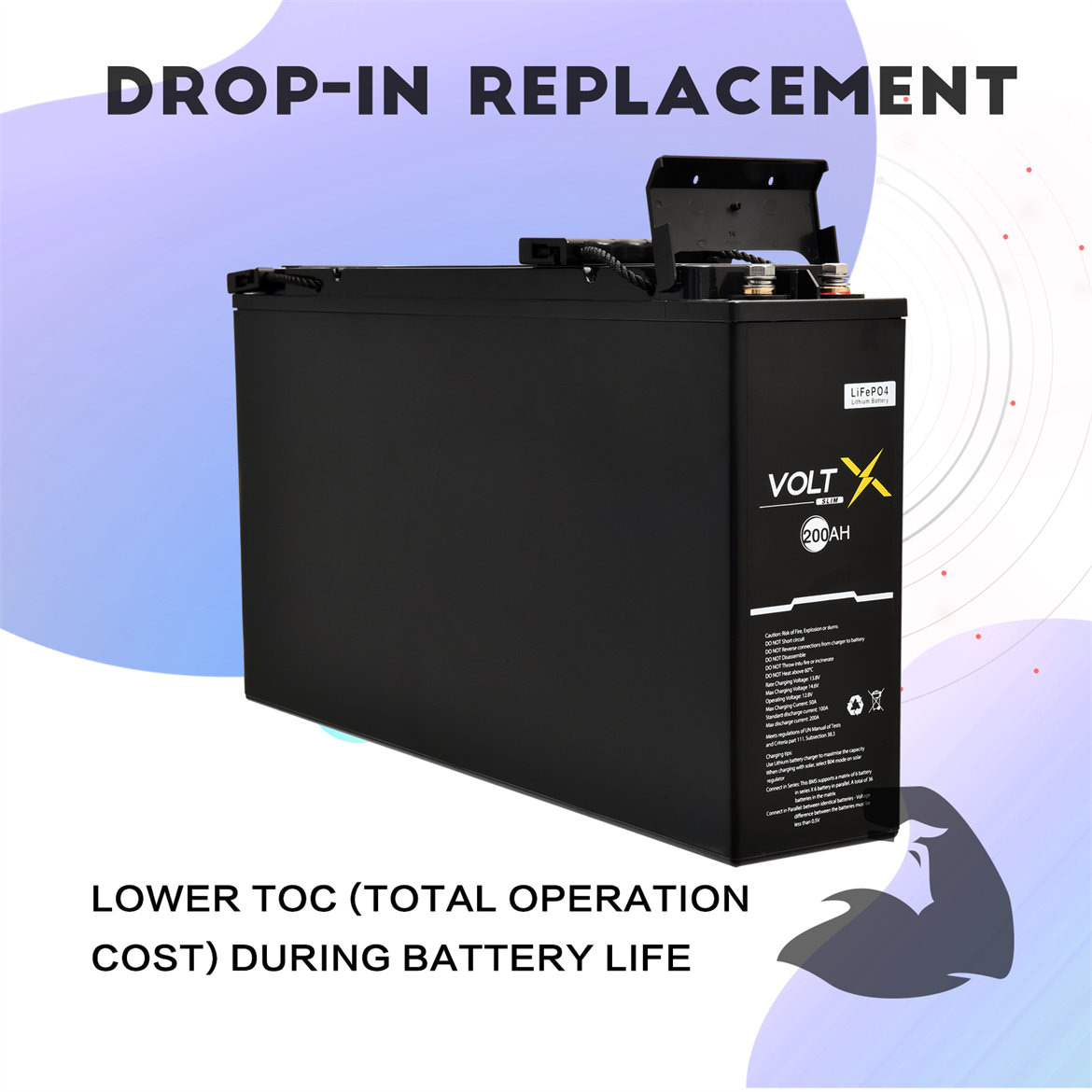

Our LiFePO4 Battery is supplied fully protected by a sophisticated specially designed lithium battery management system that constantly monitors every cell to ensure the battery is always optimized for best performance and life. Unlike gel or lead-acid batteries, Lithuim battery is safer, lighter, and more powerful with a long service and shelf life comparing to all traditional lead acid batteries. No changing of systems, equipment or extensive re-wiring is required. You simply pull your old heavy batteries out (if your back allows it) and put the new lightweight LiFePO4 battery in. It's as easy as that. This 12V 200ah battery is the perfect drop-in upgrade for your existing old and heavy batteries, Invest in this sealed,maintenance-free battery for your off-grid system today!

FEATURES:

  • Safest lithium battery technology
  • Lithium iron Phosphate Battery(LiFePO4)
  • Slimline designed to fit where other batteries cant
  • Eco-friendly
  • Multiple safety protection
  • Intelligent balancing function
  • 20 Years Designed service life
VoltX 12V 200Ah Slim Lithium Battery Image 2 VoltX 12V 200Ah Slim Lithium Battery Image 2 VoltX 12V 200Ah Slim Lithium Battery Image 3 VoltX 12V 200Ah Slim Lithium Battery Image 4 VoltX 12V 200Ah Slim Lithium Battery Image 5 VoltX 12V 200Ah Slim Lithium Battery Image 6 VoltX 12V 200Ah Slim Lithium Battery Image 7 VoltX 12V 200Ah Slim Lithium Battery Image 8 VoltX 12V 200Ah Slim Lithium Battery Image 9 VoltX 12V 200Ah Slim Lithium Battery Image 10 VoltX 12V 200Ah Slim Lithium Battery Image 11 VoltX 12V 200Ah Slim Lithium Battery Image 12



SPECIFICATIONS

Rated Voltage: 12.8V
Rated Capacity: 200Ah
Rated Energy: 2.56KWh
Maximum Charging Current: 100A
Maximum Discharging Current: 100A
Discharge Cut-off Voltage: 11.2V
Charging Voltage: 13.6~13.8V

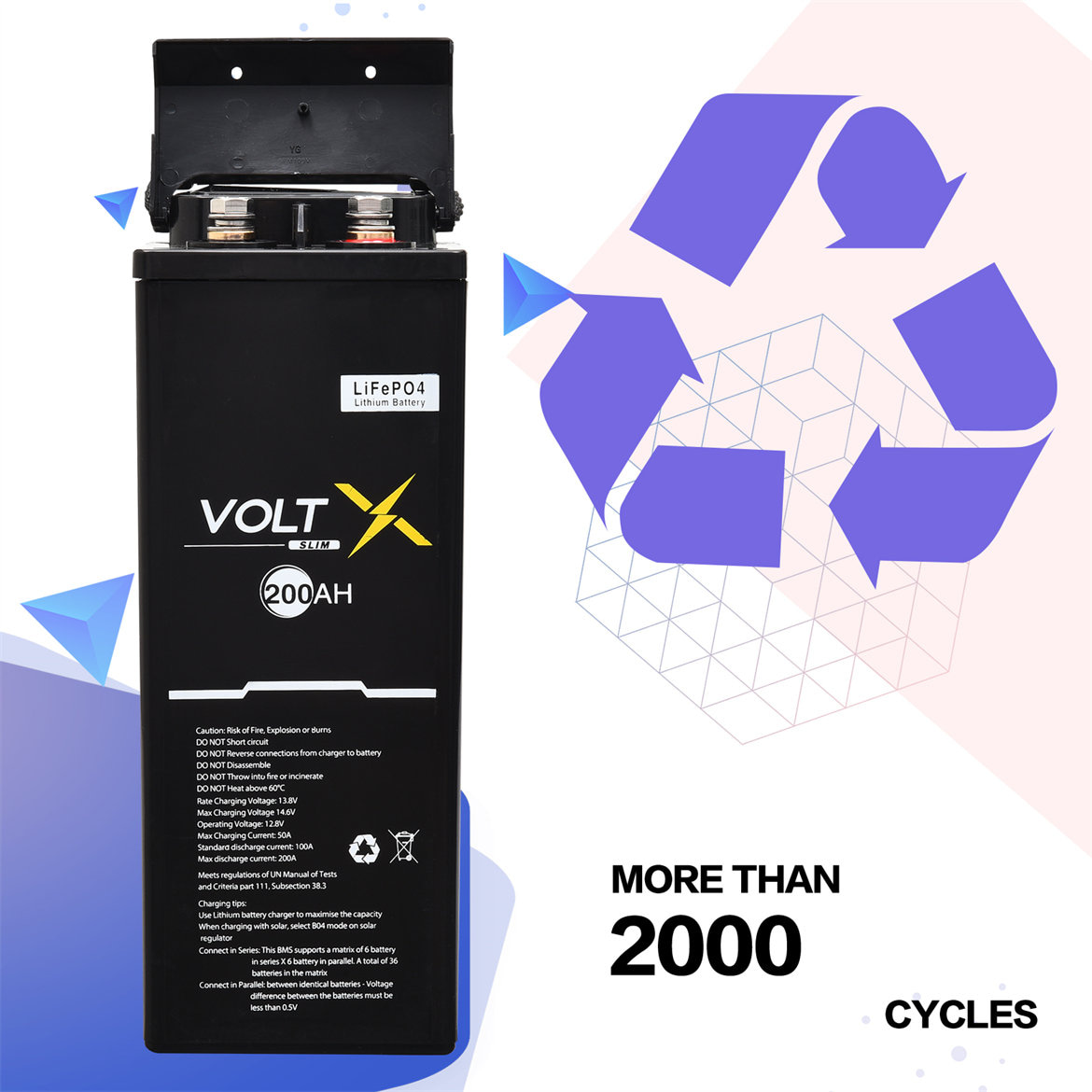

Life Cycle (@25℃, 0.5C/0.25C, 80%DOD): Approx. 2800 Cycles
Internal Resistance Fully Charged@ 25℃ ≤5mΩ
Thermal Management: Nature cooling
Operating Humidity: 60±25%R.H.
Operating Temperature:  Charging: 0°C to 50°C
Discharging: -25°C to 65°C

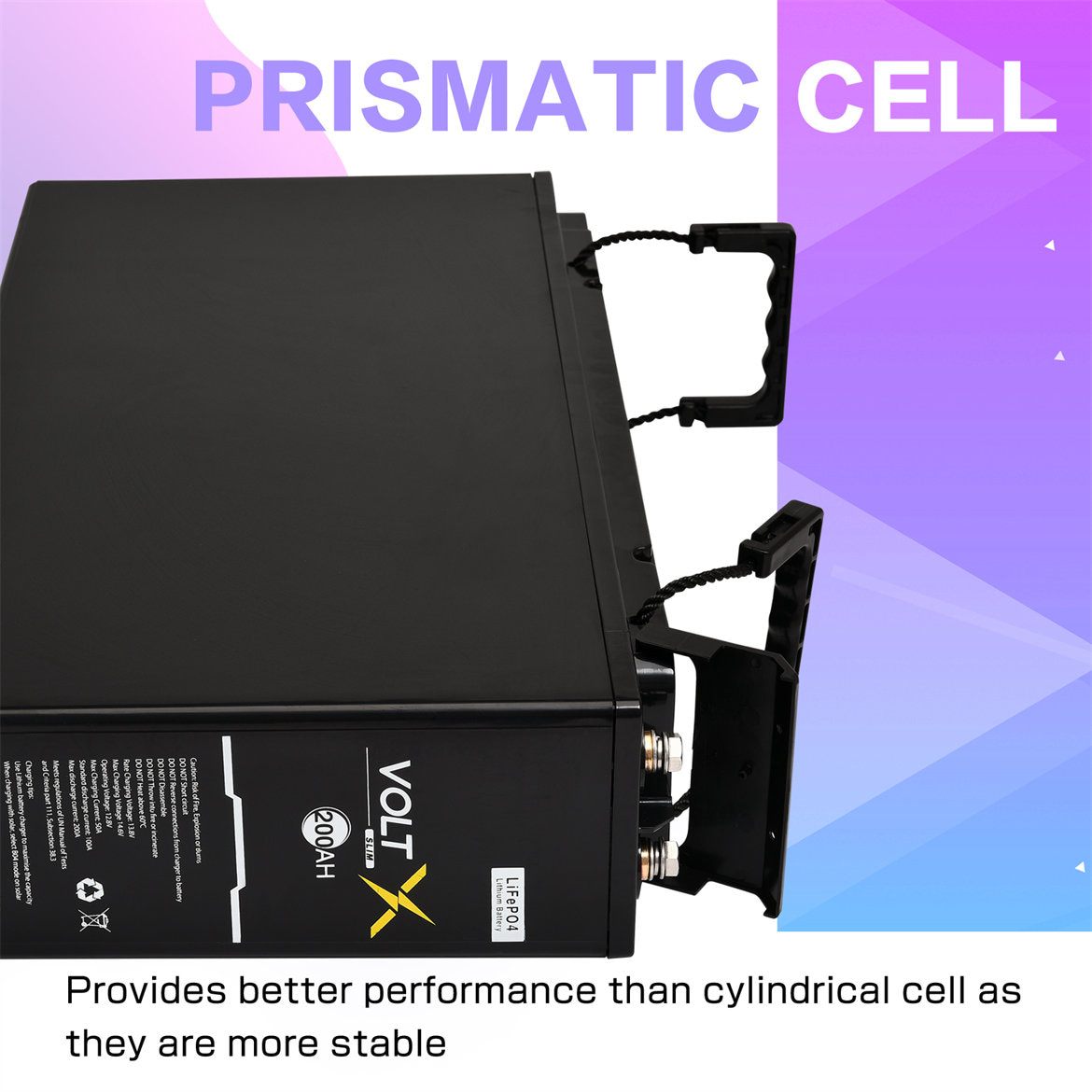

Cell: 3.2V-100Ah
Cells Grouping: 4S2P
Bolt Type: Hexagon
Bolt Material: 304 Stainless Steel
Series Connection: Yes

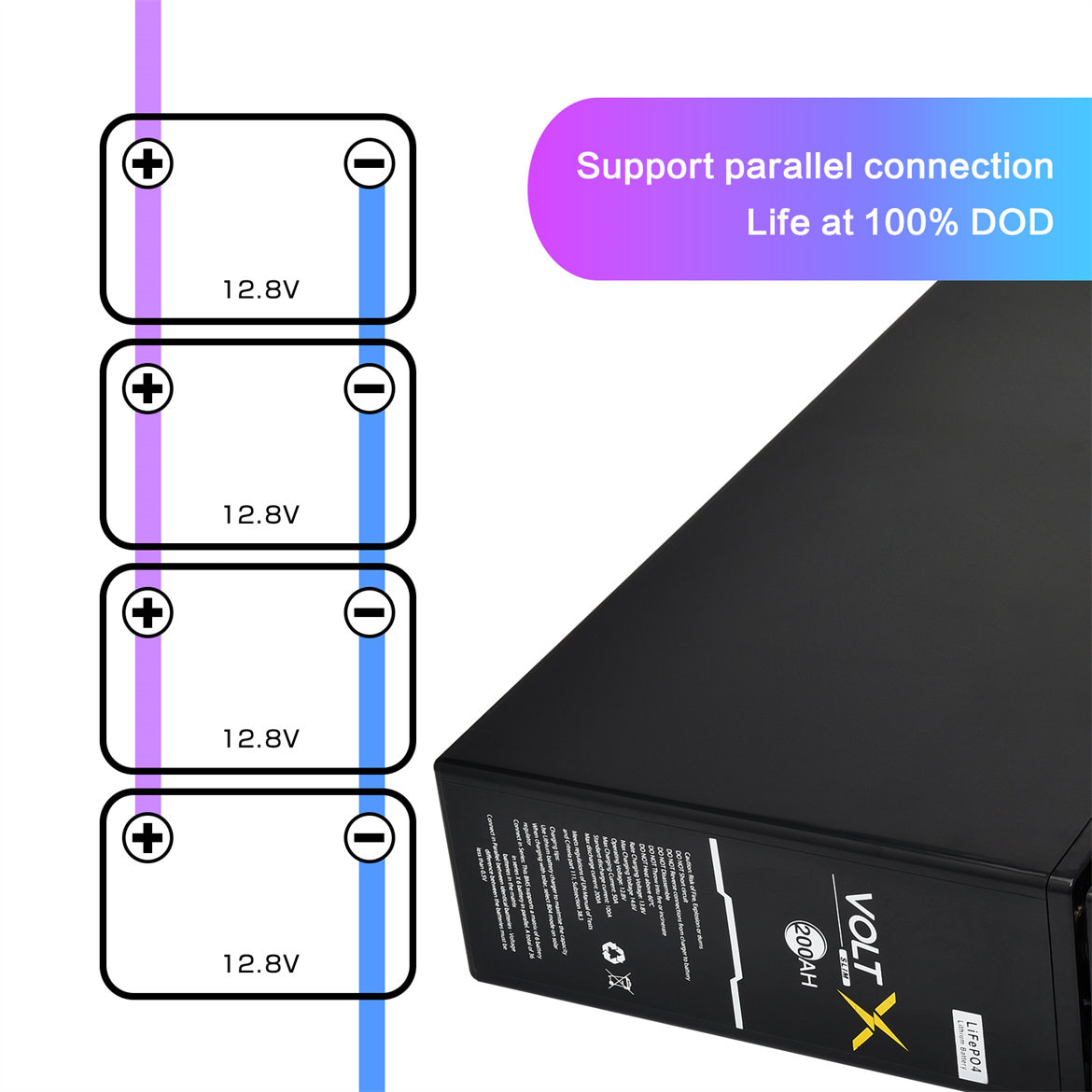

Parallel Connection: Yes
Warranty: 5 years

DIMENSIONS & WEIGHT

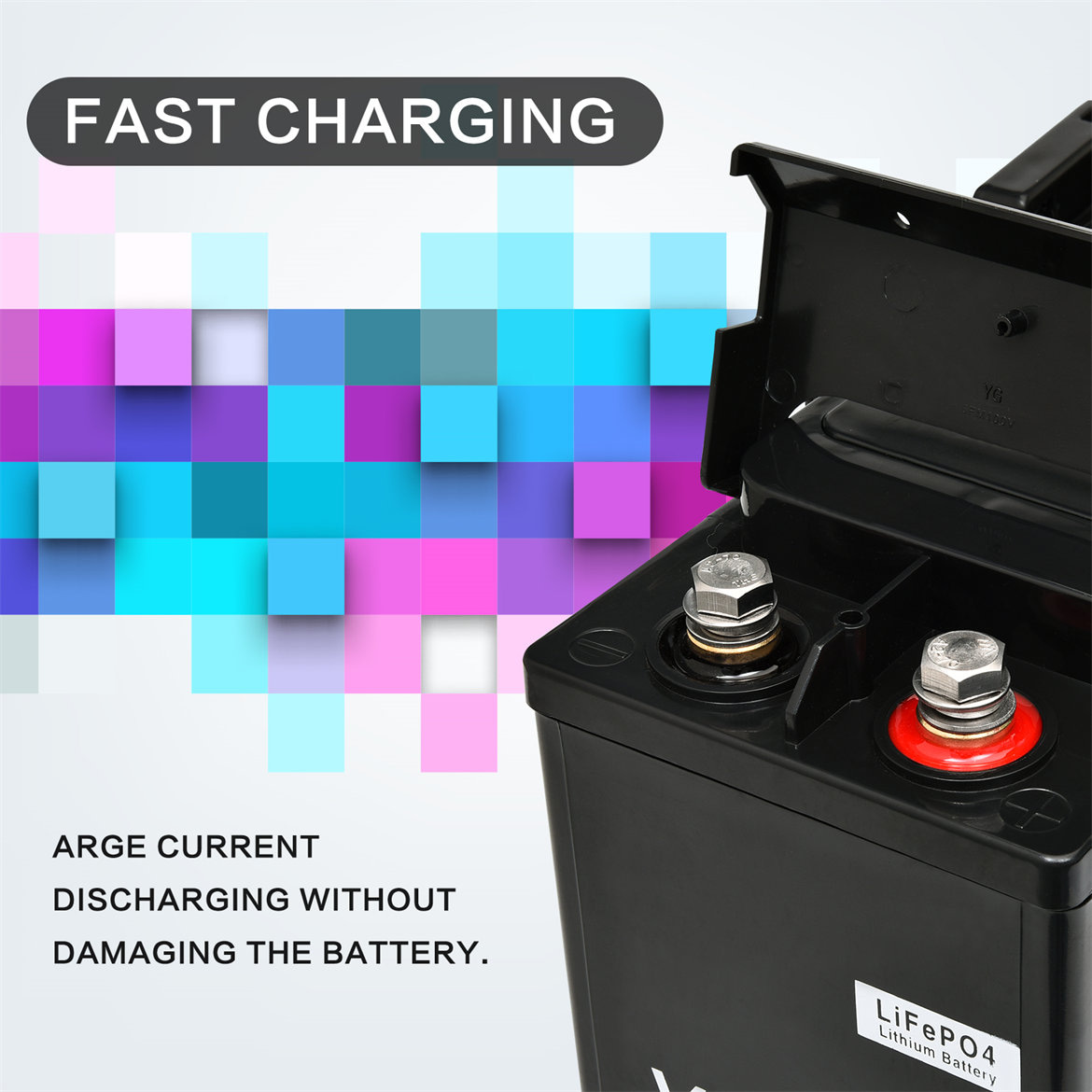

Bolt Terminal Size (Length): M8
Bolt Terminal Perimeter: Ø 16

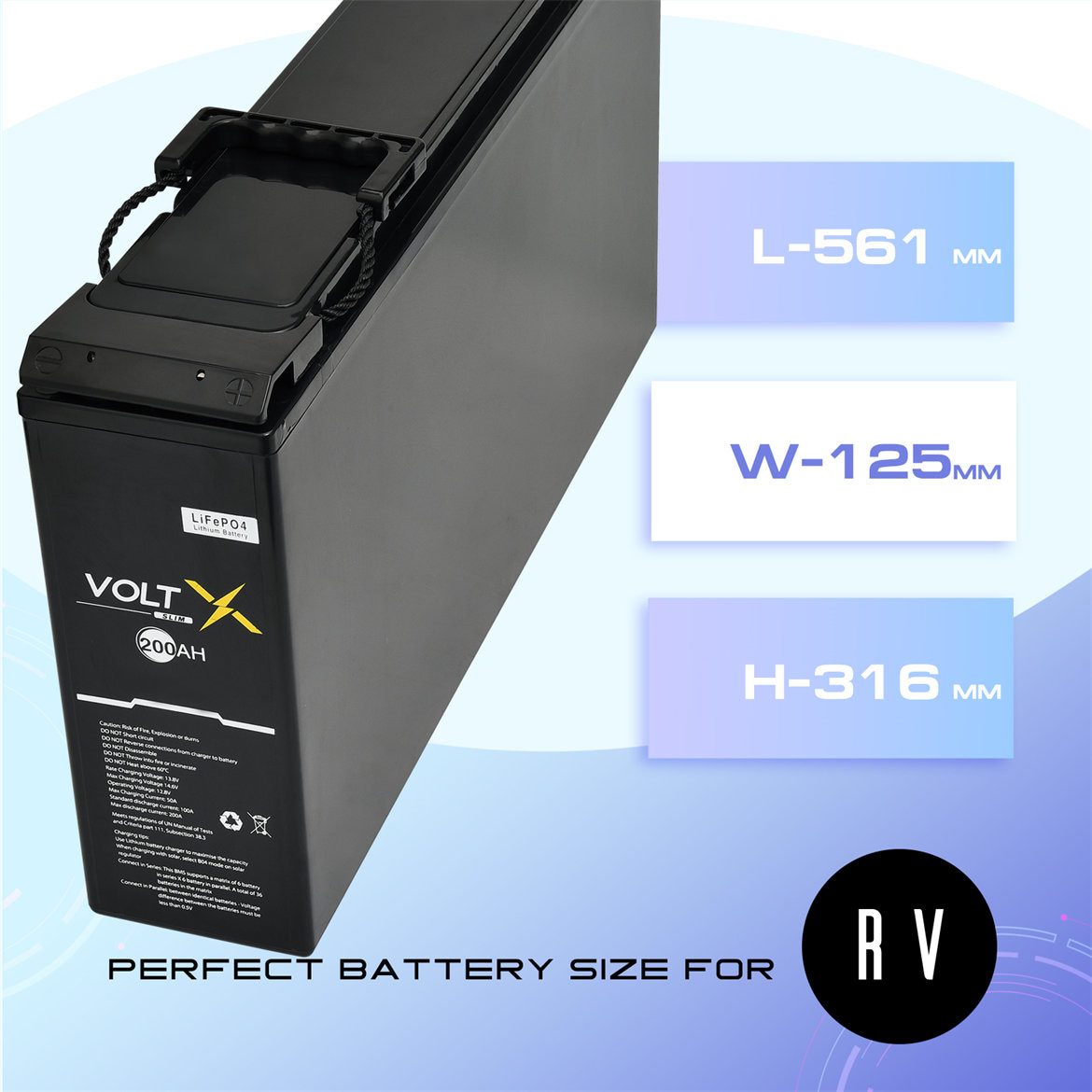

Dimensions: L552 x W110 x H295 mm
Weight: 19.0kg

WHAT'S IN THE BOX

1 x Lithium Battery
